Brand: Tobee® Capacity: 138-645 m3/h Head: 35.7-31 m PH: 2~4 Materials: Hyper chrome alloy or Rubber etc.

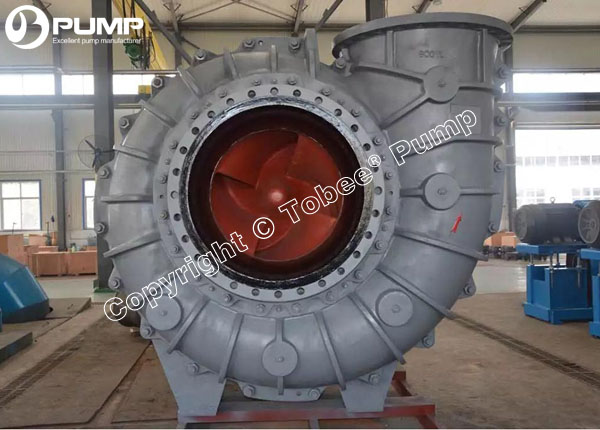

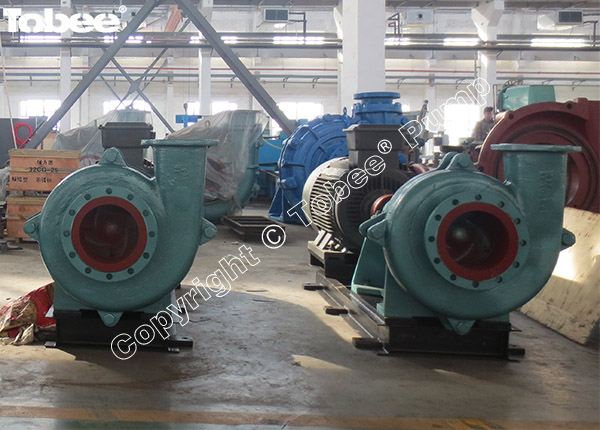

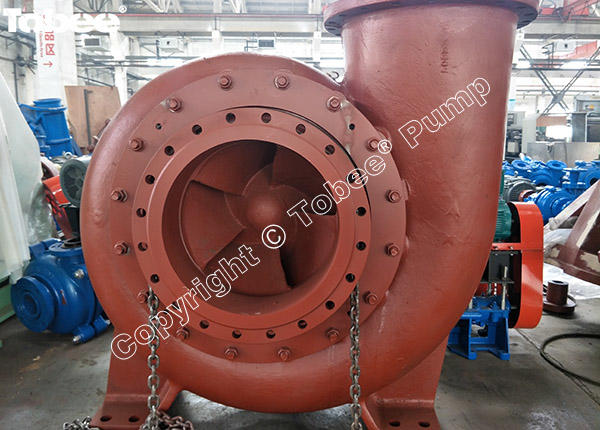

The Tobee® FGD Slurry Circulating Pump 200DT is the engineered solution for demanding Circulating Slurry Pump for Desulfurization System applications. This Horizontal Centrifugal Pump for SO2 Removal System delivers High Efficiency Pump for Wet FGD Process performance, specifically designed as a robust 200DT Slurry Pump for Flue Gas Desulfurization. As a premier Industrial Desulfurization Pump for Power Plants, aluminum smelters, and refineries, it excels in transporting highly abrasive and corrosive limestone or gypsum slurries critical for environmental compliance. Engineered for reliability in harsh chemical cleaning processes within the FGD circuit, it handles chloride ions up to 60,000ppm, slurry temperatures ≤65°C, pH values from 4-13, and weight concentrations up to 60%.
The 200DT series exemplifies Tobee®'s commitment to innovation in fluid handling. This single-stage, single-suction, axially-split Horizontal Centrifugal Pump integrates advanced design and robust materials to ensure longevity and minimal downtime where corrosion and abrasion are constant challenges:
• Superior Hydraulics: Wet parts are optimized using advanced CFD flow simulation analysis, guaranteeing efficient hydraulic performance and reliable operation under variable slurry conditions, maximizing your High Efficiency Pump for Wet FGD Process.
• Optimized Impeller Adjustment: Unique design allows for precise adjustment of the impeller position within the casing via the bearing assembly. This ensures peak efficiency is maintained over time, even as wear occurs, reducing energy costs.
• Effortless Maintenance (Back Pull-Out): Engineered with a back pull-out structure, the Tobee® FGD Slurry Circulating Pump 200DT allows full access to the impeller, shaft sleeve, and mechanical seal without disturbing the suction or discharge piping. This drastically cuts maintenance time and costs.
• Robust Bearing System: Features heavy-duty, oil-lubricated bearings – two taper roller bearings at the non-drive end and a cylindrical roller bearing at the drive end. This configuration provides exceptional load capacity and rigidity, significantly extending bearing life under the punishing loads of slurry pumping.
• Advanced Sealing: Equipped with industry-proven, FGD-specialized integrated mechanical seals, ensuring dependable containment of harsh slurries and minimizing leakage risks.
• Corrosion Resistance: Manufactured using proprietary Tobee® alloys specifically developed for FGD service, the 200DT is a truly Corrosion Resistant FGD Pump for Gypsum Slurry, combating the effects of high chlorides and varying pH.
• Space-Saving Design: Incorporates a compact, rigid X-frame support structure, minimizing the pump's footprint while ensuring stability – ideal for space-constrained plant layouts.
Model
Capacity Q
(m³/h)
Head H
(m)
Speed n
(r/min)
Max. particles
(mm)
Max. power P
(kw)
Weight
(kg)
200DT-45B
138-645
35.7-31
490-990
51
90
1750
Beyond its technical prowess, the Tobee® FGD Slurry Circulating Pump 200DT delivers tangible operational benefits:
• Reduced Total Cost of Ownership: High efficiency translates directly to lower power consumption. Combined with extended wear life and simplified maintenance, operational costs plummet.
• Maximized Uptime: Robust construction, reliable sealing, and easy serviceability minimize unexpected failures, keeping your FGD system running smoothly and meeting emission targets.
• Proven Reliability: Built with premium materials and backed by Tobee®'s expertise in slurry pumping solutions for the power and chemical industries.
FAQs
Q: What makes the Tobee® 200DT suitable for handling gypsum slurry?
Q: How does the 200DT contribute to energy savings in a desulfurization plant?
A: As a High Efficiency Pump for Wet FGD Process, its hydraulically optimized design via CFD minimizes energy loss. Furthermore, the ability to adjust the impeller position maintains peak efficiency over time, directly reducing power consumption.
Q: Is the pump difficult to maintain during scheduled outages?
A: Absolutely not. The Tobee® FGD Slurry Circulating Pump 200DT features a back pull-out design. This means critical internal components like the impeller and seal can be serviced or replaced quickly without disassembling any inlet or outlet piping, significantly reducing downtime.
