Tobee 8x6F AH Pumps F6110A05 Volute Liners

Tobee^® F6110A05 Volute Liners for Pumps: The Ultimate Heavy Duty Slurry Pump Volute Liners

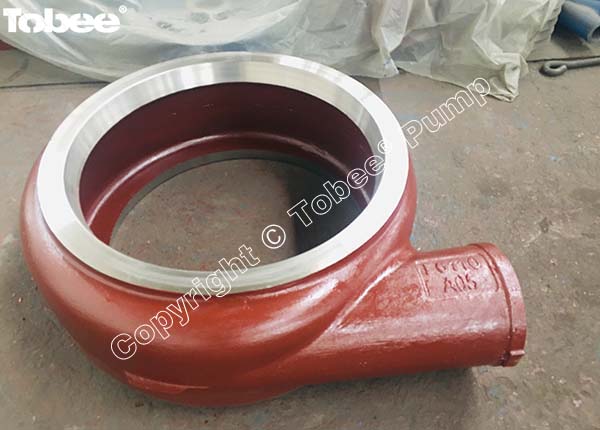

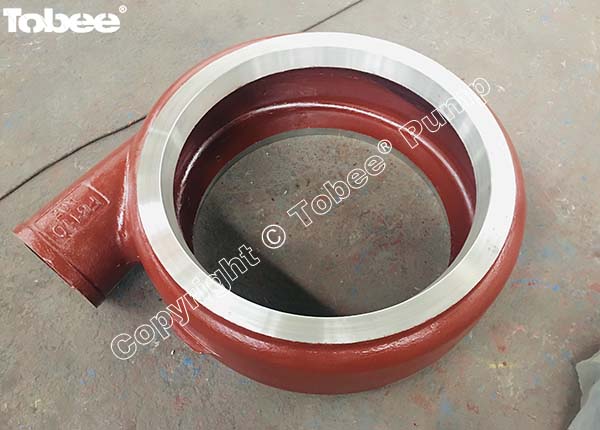

When your slurry handling operation demands uncompromising durability, Tobee^® F6110A05 Volute Liners for Pumps deliver exceptional performance. These 8x6F AH Pump Volute Liner Parts are precision engineered for horizontal centrifugal slurry pumps with 8-inch suction and 6-inch discharge. As genuine Heavy Duty Slurry Pump Volute Liners, they form the curved wet-end chamber that surrounds the impeller, converting kinetic energy into pressure energy while shielding the outer casing from abrasive wear. Offered as Tobee^® Pump Spare Parts Volute Liners, every unit is fully Interchangeable F6110A05 Pump Liner Components with original equipment, ensuring hassle-free retrofitting. Made from premium 27% high-chrome white iron (hardness up to 65 HRC), these liners resist erosion, cavitation, and corrosion in the toughest slurries.

Key Specifications of 8x6F AH Pump Volute Liner Parts

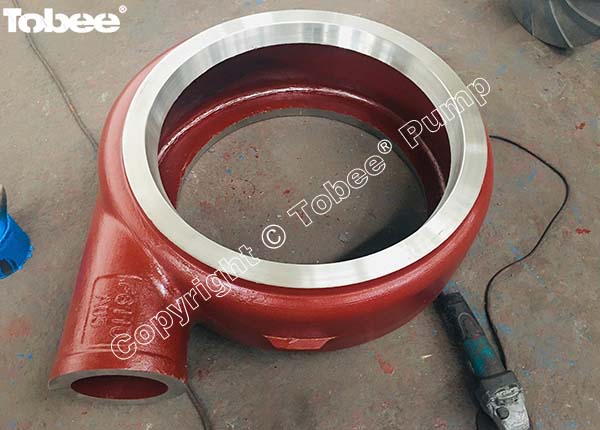

The 8x6F AH Pump Volute Liner Parts feature a curved funnel geometry that expands toward the discharge port. Key technical parameters include:

• Material Grade: A05 – 27% chromium white iron, heat-treated for maximum hardness and toughness.
• Compatibility: Direct fit for 8x6E-AH and 8x6F-AH horizontal slurry pumps.
• Hardness: 58–65 HRC, offering outstanding abrasion resistance.
• Weight: Approximately 65–80 kg depending on exact casting batch.
• Sealing: Elastomer seal rings on all liner joints prevent leakage between liner and casing.
• Attachment: Bolted (not glued) design for simple, positive mounting and quick replacement.

These Heavy Duty Slurry Pump Volute Liners are also available in natural rubber or polyurethane for corrosive or fine-particle slurries, though the A05 hard metal remains the most popular choice for high-impact mining services.

Where to Use Wear Resistant AH Pump Volute Liners and Mining Slurry Pump Volute Liner Replacement

Wear Resistant AH Pump Volute Liners like the F6110A05 are indispensable in applications where sand, rocks, or dense fluids rapidly destroy standard pumps. Typical sectors include:

• Mining & Mineral Processing: Mill discharge, cyclone feed, tailings transport, and concentrate pumping.
• Coal Preparation Plants: Handling heavy coal slurries with high solids content.
• Dredging & Sand/Gravel Extraction: Moving abrasive slurries containing quartz, garnet, or crushed rock.
• Power Generation: Fly ash and bottom ash slurry removal in coal-fired plants.
• Chemical & FGD Systems: Corrosive and erosive fluids in flue gas desulfurization.

Performing a Mining Slurry Pump Volute Liner Replacement with Tobee^® components typically extends wet-end life by up to 30% compared to standard aftermarket alternatives, reducing downtime and maintenance costs significantly.

Frequently Asked Questions About Interchangeable F6110A05 Pump Liner Components

Q: Are your Interchangeable F6110A05 Pump Liner Components a direct fit for original 8x6F AH pumps?
A: Yes. Tobee^® manufactures these liners to exact dimensional and tolerance standards, making them fully interchangeable with original parts without any modification.

Q: How do I know when to replace the Tobee^® Pump Spare Parts Volute Liners?
A: Signs include decreased pump efficiency, visible grooving or thinning of the liner wall, excessive leakage at the casing joint, or unusual vibration indicating hydraulic imbalance.

Q: Can I mix a Tobee^® F6110A05 Volute Liner for Pumps with other brands’ impellers or throat bushes?
A: While we recommend using a complete set of Tobee^® wet parts for optimal fit and wear life, the liner is designed as a standard interface. However, for best results, always pair with Tobee^® impellers and frame plate liners.

Q: What is the typical lead time for Heavy Duty Slurry Pump Volute Liners?
A: Stock items are usually shipped within 3–5 working days. Custom materials or large volumes may require 2–3 weeks.

Get Your Mining Slurry Pump Volute Liner Replacement Today

Tobee^® F6110A05 Volute Liners are premium pump spare parts designed for 8x6F AH slurry pumps. Engineered for excellent wear resistance and reliable slurry handling performance. Contact Tobee^® today for durable slurry pump replacement parts and solutions.
