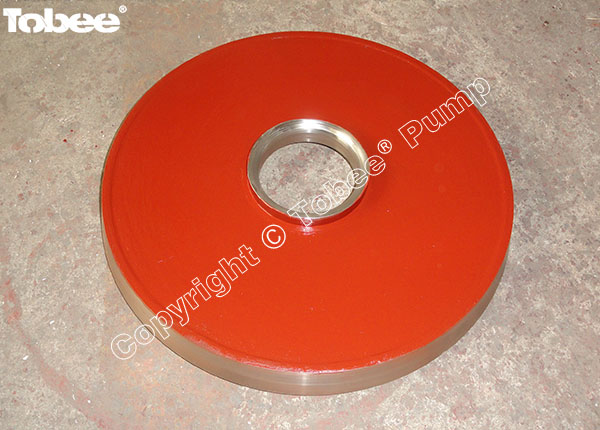

  • Warman Pump Wear Parts

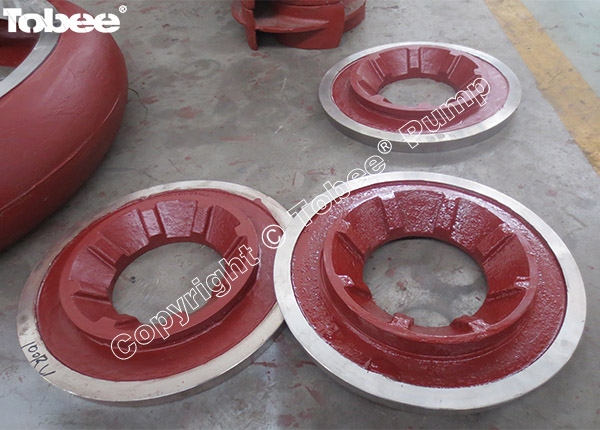

  • Warman Vertical Slurry Pump Parts

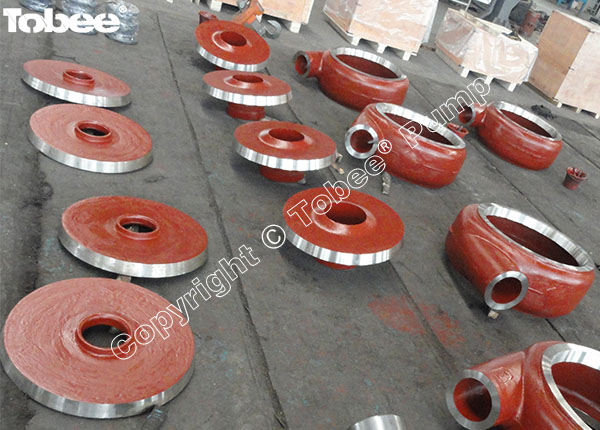

  • China Weir Warman Pump Spares

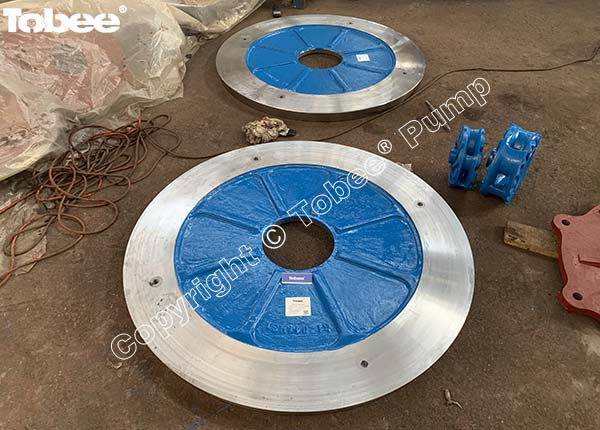

    Slurry Pump Frame Plate Liner Insert

    SPECIFICATIONS:
    Pump model: AH, HH, L, M, SP, G/GH, AF
    Parts no.: *041
    Materials: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
    Share
    +86 180 3203 4573
    Description

    Slurry Pump Frame Plate Liner Insert is a wear part of slurry pumps, It is also called for slurry pump back liner based on locating position in slurry pump structure, Frame plate liner insert forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers frame plate liner inserts are interchangeable with warman pump frame plate liner inserts with high chrome, natural rubber, polyurethane for different working condition.


    Slurry Pump Frame Plate Liner Insert Code:


    Frame Plate Liner Insert Code

    Warman AH Slurry Pumps

    Materials

    B1041

    1.5/1B-AH

    High chrome, Natural rubber, Polyurethane

    B15041

    2/1.5B-AH

    High chrome, Natural rubber, Polyurethane

    C2041

    3/2C-AH

    High chrome, Natural rubber, Polyurethane

    D3041

    4/3C-AH, 4/3D-AH

    High chrome, Natural rubber, Polyurethane

    E4041

    6/4D-AH, 6/4E-AH

    High chrome, Natural rubber, Polyurethane

    F6041

    8/6E-AH, 8/6F-AH, 8/6R-AH

    High chrome, Natural rubber, Polyurethane

    G8041

    10/8ST-AH

    High chrome, Natural rubber, Polyurethane

    G10041

    12/10ST-AH

    High chrome, Natural rubber, Polyurethane

    G12041

    14/12F-AH,14/12ST-AH

    High chrome, Natural rubber, Polyurethane

    H14041

    16/14TU-AH

    High chrome, Natural rubber, Polyurethane

    FPL Insert

    Warman HH Slurry Pumps

    Materials

    CH1041

    1.5/1C-HH

    High chrome, Polyurethane

    DH2041

    3/2D-HH

    High chrome, Polyurethane

    EH3041

    4/3E-HH

    High chrome, Polyurethane

    FH4041

    6/4F-HH

    High chrome, Polyurethane

    FH6041

    6S-H, 8/6S-H

    High chrome, Polyurethane

    FPL Insert

    Warman L Slurry Pumps

    Materials

    175041

    20A-L

    High chrome, Natural rubber

    32056

    50B-L

    High chrome, Natural rubber

    43041

    75C-L

    High chrome, Natural rubber

    64041

    100D-L

    High chrome, Natural rubber

    86041

    150E-L

    High chrome, Natural rubber

    108041

    200E-L

    High chrome, Natural rubber

    SL30041

    300S-L

    High chrome, Natural rubber

    SL35041

    350S-L

    High chrome, Natural rubber

    STL40041

    400ST-L

    High chrome, Natural rubber

    STL45041

    450ST-L

    High chrome, Natural rubber

    TUL55041

    550TU-L

    High chrome, Natural rubber

    FPL Insert

    Warman G(H) Gravel Pumps

    Materials

    DG4041

    6/4D-G, 6/4E-G

    High chrome

    EG6041

    8/6E-G

    High chrome

    FG8041

    10/8F-G, 10/8S-G

    High chrome

    FG10041

    12/10G-G

    High chrome

    GG12041

    14/12G-G

    High chrome

    FGH8041

    10/8F-GH

    High chrome

    SGGH10041

    12/10G-GH

    High chrome

    TG14041

    16/14TU-GH

    High chrome

    FPL Insert

    Warman SP Vertical Slurry Pumps

    Materials

    SP4041

    40PV-SP

    High chrome, Natural rubber, Polyurethane

    SP65041

    65QV-SP

    High chrome, Natural rubber, Polyurethane

    SP10041

    100RV-SP

    High chrome, Natural rubber, Polyurethane

    SP15041

    150SV-SP

    High chrome, Natural rubber, Polyurethane

    SP20041

    200SV-SP

    High chrome, Natural rubber, Polyurethane

    SP25041

    250TV-SP

    High chrome, Natural rubber, Polyurethane

    SP30041

    300TV-SP

    High chrome, Natural rubber, Polyurethane


    Slurry Pumps After-sales Service:


    As the slurry pump wet ends parts such as the impeller, volute liner, Frame plate liner insert, Throat bush, shaft sleeve are consumption parts and we could provide you always the qualified slurry pump parts within very short time.


    Packing Transport Services
    Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping. having own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.

    Installation Services
    Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application. We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.

    Technical Support Services
    Technical data sheet, Performance curve, General arrangement drawing, Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.

    Note:

    * Tobee® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.

    * Tobee®  pump frame plate liner inserts are only interchangeable with Warman®  pump frame plate liner inserts.

    * This document is the property of Tobee® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
