Size: 150 mm Capacity: 99-479.1 m3/h Head: 3.0-49.3 m Max. particle: 50 mm Concentration: 0%-69% Materials: High chrome alloy, Cast iron, Stainless steel etc.
For industries demanding relentless performance in the most challenging environments, the Tobee® Vertical Slurry Sump Pump 150TJL stands as a benchmark. This vertical electric slurry sump pump system is engineered to be a heavy duty vertical pump for slurry handling, offering unparalleled durability and efficiency. As an electric driven sump pump for processing, it delivers powerful, continuous operation for abrasive and corrosive applications. Its design as a vertical slurry transfer pump for industry makes it ideal for deep sump dewatering and transfer tasks. Furthermore, it is recognized as a high efficiency vertical pump for solids, ensuring optimal performance and energy savings.
Slurries, which are mixtures of liquid and solid particles, are notoriously abrasive and can quickly destroy standard pumps. A heavy duty vertical pump for slurry handling is specifically built to withstand this punishment. Unlike horizontal pumps with vulnerable seals and bearings, these vertical models are submerged directly into the sump or pit. The Tobee® 150TJL exemplifies this robust design, constructed with wear-resistant materials to combat the erosive effects of high-density slurries, ensuring long-term reliability where other pumps fail.
| Model |
Max. power P (kw) |
Clear water performance |
Max. Particle (mm) |
Weight (kg) |
|||
| Capacity Q (m3/h) | Head H(m) | Speed n (r/min) | Max. Eff.(%) | ||||
| 150TJL-B55B | 110 | 128.5-479.1 | 10.0-49.3 | 490-980 | 59.8 | 50 | 2112 |
| 150TJL-A35 | 37 | 99-364 | 3.0-17.9 | 490-980 | 69.0 | 15 | 800 |

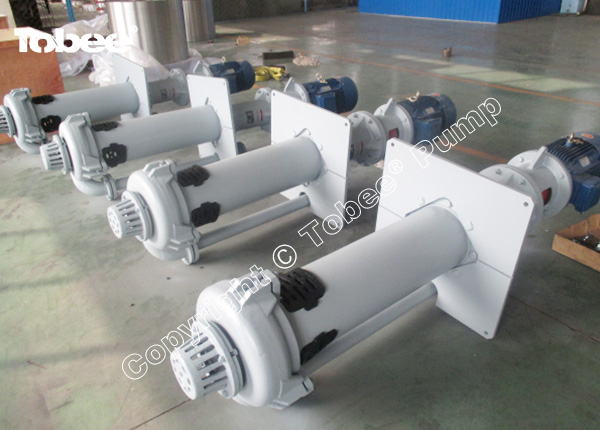

Why choose an electric driven pump for your toughest applications? The answer lies in reliability and cleanliness. The Tobee® 150TJL electric driven sump pump for processing provides consistent power for continuous operation without the complications of hydraulic systems or external seals. Its cantilever shaft design is a game-changer, completely eliminating the need for submerged bearings, shaft seals, or seal water. This not only removes common failure points but also saves significantly on ancillary costs and prevents water dilution of the process slurry.
The Tobee® 150TJL vertical slurry transfer pump for industry is built with features that directly address industrial needs:
• Robust Cantilever Design: No bottom bearings or seals below the mounting plate means no lubricating oil contamination and dramatically reduced maintenance.• Efficient Solids Handling: The semi-open impeller design allows the pump to pass large solid particles up to 50mm in diameter, making it a highly effective industrial vertical sump pump for slurries with high concentrations up to 70%.
Efficiency is paramount in reducing operational costs. The Tobee® 150TJL operates as a high efficiency vertical pump for solids through its optimized hydraulics and impeller design. The semi-open, double-suction impeller not only facilitates the passage of large particles but also balances axial thrust, leading to reduced bearing load, lower vibration, and extended service life. This translates directly into lower energy consumption and higher cost-effectiveness for operations like minerals processing and sand and gravel extraction.
The versatility of the Tobee® 150TJL as an industrial vertical sump pump for slurries is proven across a wide spectrum of sectors. Its ability to handle abrasive, high-density mixtures makes it indispensable for:
• Minerals Processing: Transferring grinding circuit discharges and tailings.
Are you facing challenges with flooded sumps or tailings ponds? The Tobee® 150TJL excels as a vertical shaft electric pump for dewatering. Its vertical configuration allows it to be lowered directly into the pit, effectively removing slurry and water to desired levels. The rugged construction ensures it can handle the settled solids often encountered during dewatering operations without clogging or sustaining damage, providing a reliable solution for maintaining dry and accessible work areas.
Upgrade your slurry handling with the robust and efficient Tobee® Vertical Slurry Sump Pump 150TJL. This electric driven vertical unit is engineered for maximum reliability in your most demanding processes. Explore our durable pumping solutions—contact us today for a quote and see the difference in performance and longevity!
