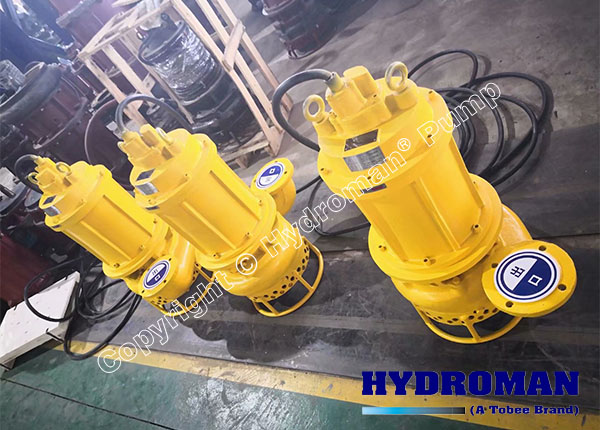

  • Dragflow Submersible Slurry Pumps
  • Goodwin Submersible Slurry Pumps

    100TJQ Submersible Slurry Pump

    SPECIFICATIONS:
    Size: 100mm
    Capacity: 60-150m3/h
    Head: 10-30m
    Max. particles: 21mm
    Temperature Range: ≤80°C
    Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc
    Share
    +86 180 3203 4573
    Description

    Hydroman™ 100TJQ Submersible Impeller Slurry Pump is designed from Dragflow, Toyo pumps technology and combined with the actual situation of the majority of users, the design research and development, motor and pump coaxial integrated directly into the medium to work hydraulic machinery. Hydroman pump is excellent selection, advanced structure, wide flow channel through ability, metallurgy, chemical, mining, power plants and other enterprise for conveying containing sand, cinder, tailings and other natural particles or liquids, it is the ideal alternative of traditional slurry pump.


    Design Features:

    √ The 100TJQ submersible slurry pumping equipment is designed and manufactured with advanced technologies introduced from overseas countries. Made of abrasion-resistant materials, it enjoys an significantly expanded service lifespan and requires much less maintenance;
    √  Aside from the main impeller, this submersible slurry pump is also equipped with mixer impeller which could stir up the deposited slurries and promote the conveyance;
    √  Its independent mechanical sealing device could perfectly keep the external and internal pressures of the oil cavity balanced and ensure the sealing effect, significantly expanding the equipment’s service life;
    √ This industrial slurry pump could automatically start the over-heating devices, water-proof protectors as well as other protection devices to ensure its smooth and safe operations under harsh conditions;
    √ Such reliable protection devices as the anti-fogging device for the motor and bearing temperature protection device are available for customers now.

    Hydroman™ 100TJQ Submersible Impeller Slurry Pump Performance Parameters:


    No.

    Model

    Size

    (mm)

    Capacity Q

    (m3/h)

    Head H

    (m)

    Power P

    (kw)

    Eff. η

    (%)

    Speed n

    (r/min)

    Max. particles

    (mm)

    Weight

    (kg)

    1

    100TJQ100-10-7.5

    100

    100

    10

    7.5

    48

    1460

    21

    220

    2

    100TJQ100-18-11

    100

    100

    18

    11

    48

    1460

    21

    240

    3

    100TJQ60-30-15

    100

    60

    30

    15

    41

    1460

    13

    265

    4

    100TJQ75-25-15

    100

    75

    25

    15

    43

    1460

    13

    260

    5

    100TJQ100-18-15

    100

    100

    18

    15

    49

    1460

    21

    270

    6

    100TJQ150-15-15

    100

    150

    15

    15

    51

    1460

    21

    270
