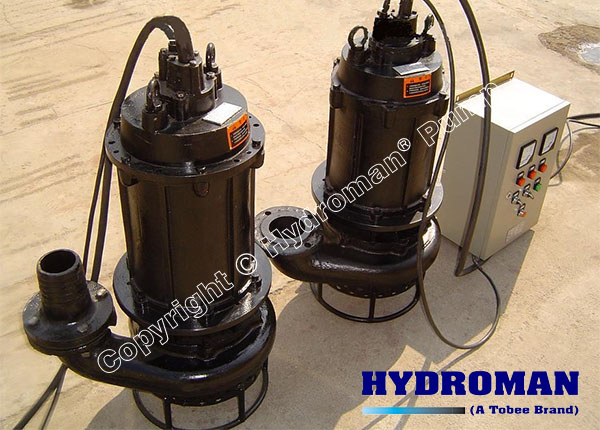

• Hydroman 3 inch Submersible Sand Pumps with Controller

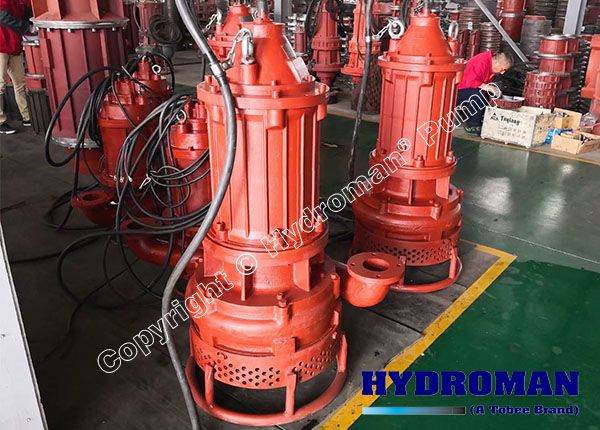

  • Dragflow 3 inch Submersible Sand Pump

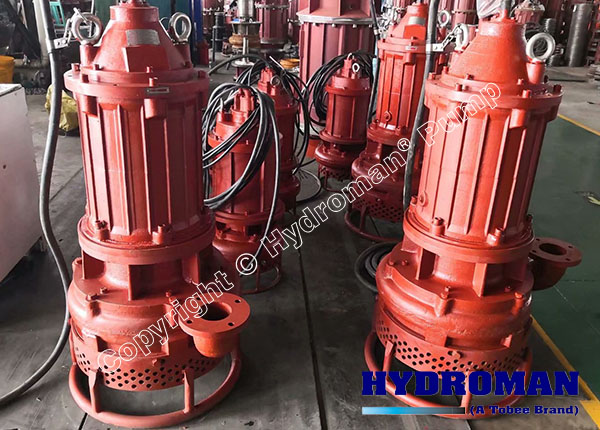

  • Toyo 3inch Sand Submersible Pump

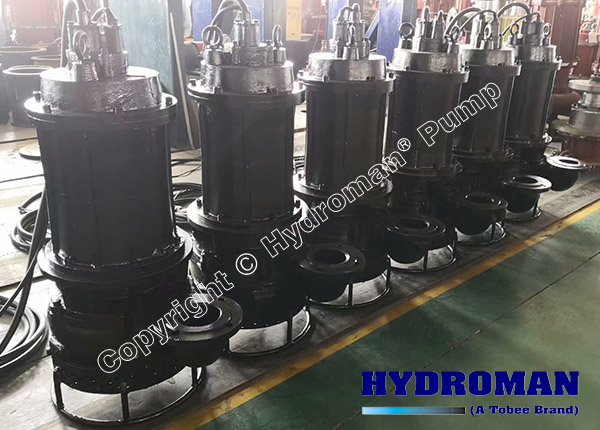

  • Tsurumi 3inch Submersible Slurry Pump

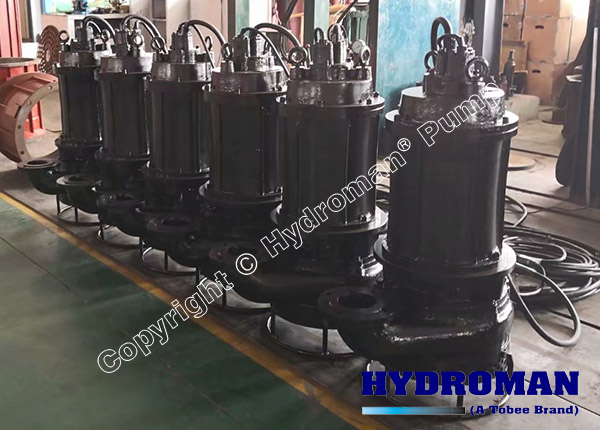

  • 3inch Submersible Dredging Sand Pump China

    80TJQ Submersible Sand Pump

    SPECIFICATIONS:
    Size: 80mm
    Capacity: 15-70m3/h
    Head: 10-40m
    Max. particles: 13mm
    Temperature Range: ≤80°C
    Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc
    Share
    +86 180 3203 4573
    Description

    Hydroman™ 80TJQ Submersible Sand Pump is improved, and overcome the deficiency existing submersible pumps in the development, the hydraulic model, sealing technology, the mechanical structure and control to protect the integrated design optimization and innovation, this sand pump is simple in structure, easy installation, use of safe and reliable, long life.There is no need to build complex ground pump house and fixed device for pump submerging under water. Hydroman submersible sand pump is suitable for conveying contains sand, coal cinder, tailings slurry, such as abrasive particles are mainly used in metallurgy, mining, electricity, chemical industry.


    Design Features:

    √ The Submersible sand Pump bottom with agitator which can spray the deposited sludge into turbulent flow to improve efficiency highly.
    √  The motor with overheat protection, water inlet detecting projection, with float switch to control it and operate safely for a long term in harsh working conditions.
    √  The wear parts of the submersible sand pump are made from high alloy wear-resistant material, very wear resistance. or if you used for sea water ,the material can be for stainless steel 316L or duplex steel 2205 or Cd4Mcu etc
    √ Applicable for conveying media such as sludge, ore slurry, coal slurry, sand, stones containing big solid particles, pumping sand for building, silt sand, silt, tailing slurry, ore, iron sand ore, sediment in sewage treatment works, etc.

    Hydroman™ 80TJQ Submersible Sand Pump Performance Parameters:


    No.

    Model

    Size

    (mm)

    Capacity Q

    (m3/h)

    Head H

    (m)

    Power P

    (kw)

    Eff. η

    (%)

    Speed n

    (r/min)

    Max. particles

    (mm)

    Weight

    (kg)

    1

    80TJQ20-30-5.5

    80

    20

    30

    5.5

    42

    1460

    13

    205

    2

    80TJQ30-20-5.5

    80

    30

    20

    5.5

    54

    1460

    13

    205

    3

    80TJQ45-15-5.5

    80

    45

    15

    5.5

    41

    1460

    13

    205

    4

    80TJQ15-20-5.5

    80

    15

    20

    5.5

    33

    1460

    13

    205

    5

    80TJQ50-10-5.5

    80

    50

    10

    5.5

    44

    1460

    13

    205

    6

    80TJQ15-20-7.5

    80

    15

    20

    7.5

    34

    1460

    13

    210

    7

    80TJQ20-25-7.5

    80

    20

    25

    7.5

    35

    1460

    13

    210

    8

    80TJQ25-20-7.5

    80

    25

    20

    7.5

    36

    1460

    13

    210

    9

    80TJQ25-30-7.5

    80

    25

    30

    7.5

    36

    1460

    13

    210

    10

    80TJQ30-30-7.5

    80

    30

    30

    7.5

    37

    1460

    13

    210

    11

    80TJQ32-20-7.5

    80

    32

    20

    7.5

    37

    1460

    13

    210

    12

    80TJQ45-15-7.5

    80

    45

    15

    7.5

    41

    1460

    13

    210

    13

    80TJQ25-40-11

    80

    25

    40

    11

    36

    1460

    13

    300

    14

    80TJQ40-25-11

    80

    40

    25

    11

    38

    1460

    13

    240

    15

    80TJQ50-21-11

    80

    50

    21

    11

    40

    1460

    13

    240

    16

    80TJQ50-26-11

    80

    50

    26

    11

    40

    1460

    13

    240

    17

    80TJQ70-20-11

    80

    70

    20

    11

    43

    1460

    13

    240

    18

    80TJQ25-40-15

    80

    25

    40

    15

    37

    1460

    13

    330

    19

    80TJQ50-26-15

    80

    50

    26

    15

    40

    1460

    13

    260

    20

    80TJQ50-28-15

    80

    50

    28

    15

    40

    1460

    13

    260

    21

    80TJQ70-24-15

    80

    70

    24

    15

    42

    1460

    13

    260
