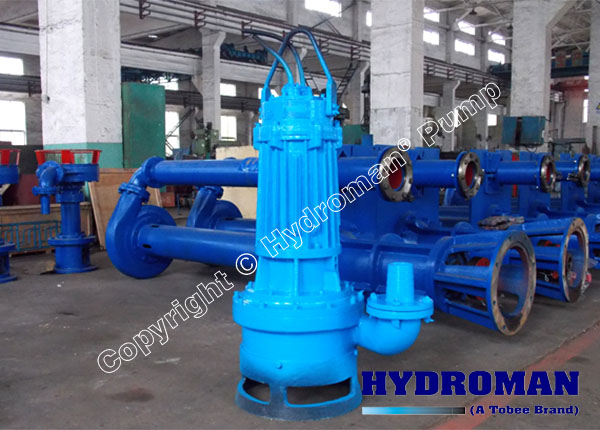

    65TJQ Submersible Dredge Pump

    SPECIFICATIONS:
    Size: 65mm
    Capacity: 30-45m3/h
    Head: 8-16m
    Max. particles: 10mm
    Temperature Range: ≤80°C
    Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc
    Share
    +86 180 3203 4573
    Description

    Hydroman™ 65TJQ Submersible Dredge Pump is a kind of hydraulic mechanism which motor connects directly with pump. It is used for delivering liquid contained sand, coal cinder solid etc. The dredge  pump can be mainly employed in clearing the mud in lake, river, sea and widening channel etc. it also can be applied to clear out sewage pool in building site, steel works and power station etc. Hydroman dredge pump adopts excellent material, advanced structure, and it is with wide flowing passage & strong delivery ability. The wear parts are wear-resistant high chome alloy. The 65TJQ submersible dredge pump can bo also completed with control unit. The dredge pump set consists of main impeller and vice impeller two parts. The main impeller is used for absorbing and delivering solid-liquid mixture, the vice impeller is used for spraying or stirring solid-liquid mixture to help the impeller delivering.


    Design Features:

    √  No limitation on delivery heads, high efficiency, and thoroughness in removing slurry/sands.
    √ No auxiliary vacuum pumps is required, bringing down the cost of ownership.
    √ No auxiliary agitating device is required, thus enabling easier operation.
    √ No complex ground protection or fixation device is needed for fastening the motor in water, thus allowing for easier installation and maintenance.
    √ As the agitating impeller is in direct contact with the surface of sediments, the fluid density can be controlled by the submerged depth, thus enabling easier control of density.
    √ The device is submerged in water to work, thus producing no noise or vibration, and making the work site cleaner.

    Hydroman™ 65TJQ Submersible dredge Pumps Performance Parameters:


    No.

    Model

    Size

    (mm)

    Capacity Q

    (m3/h)

    Head H

    (m)

    Power P

    (kw)

    Eff. η

    (%)

    Speed n

    (r/min)

    Max. particles

    (mm)

    Weight

    (kg)

    1

    65TJQ30-12-3

    65

    30

    12

    3

    60

    1460

    8

    110

    2

    65TJQ35-10-3

    65

    35

    10

    3

    64

    1460

    8

    110

    3

    65TJQ40-8-3

    65

    40

    8

    3

    66

    1460

    8

    110

    4

    65TJQ30-16-4

    65

    30

    16

    4

    52

    1460

    10

    113

    5

    65TJQ35-15-4

    65

    35

    15

    4

    60

    1460

    10

    113

    6

    65TJQ40-12-4

    65

    40

    12

    4

    63

    1460

    10

    113

    7

    65TJQ45-10-4

    65

    45

    10

    4

    66

    1460

    10

    113
