TSQ400 Submersible Heavy Solids Pump

SPECIFICATIONS:

Size: 200 mm
Capacity: 280-480 m³/h
Head: 15-64 m
Power: 37-132 kw
Max. particle: 28-29 mm
Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

Share

+86 180 3203 4573

Sales@tobeepump.com

Inquire Now Next Products

Description

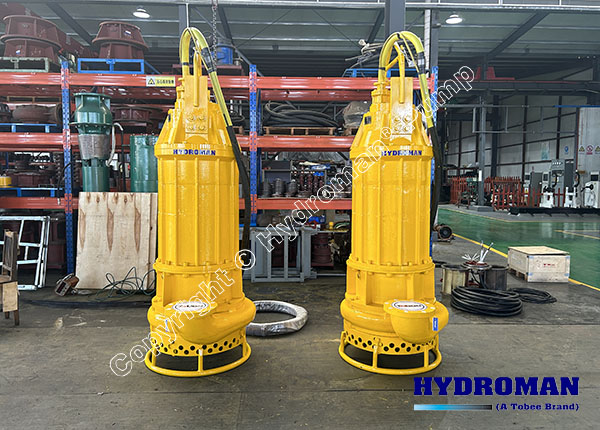

Master Tough Slurries with the Hydroman^® TSQ400 Electric Submersible Heavy Solids Pump

Facing the relentless challenge of pumping abrasive, solid-laden mixtures like sand, gravel, sludge, and mining waste? The Hydroman^® TSQ400 Electric Submersible Heavy Solids Pump is engineered to conquer these demanding tasks. This High Efficiency Submersible Heavy Duty Pump for Solids delivers unmatched performance where others falter, making it the definitive Durable Electric Submersible Pump for Mining Applications and beyond. Designed for vertical submersion directly into the thickest media, the TSQ400 Electric Submersible Pump for Industrial Use excels in critical environments like river dredging and construction dewatering, proving itself as the ultimate Heavy Duty Submersible Pump for Mining and Construction.

Built for the Brutal: River Dredging & Industrial Dominance

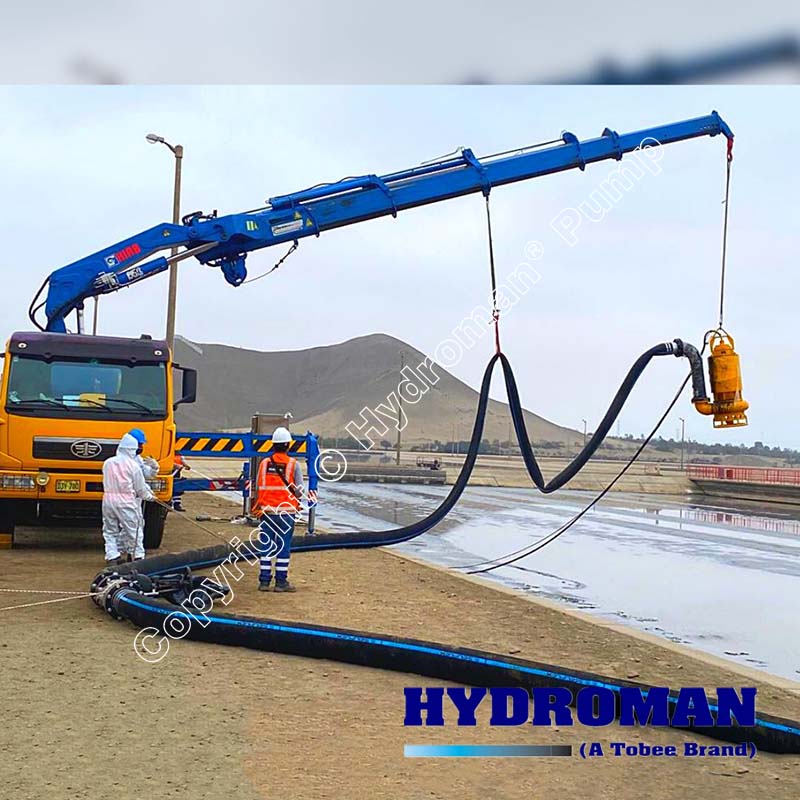

The Hydroman^® Submersible Pump for Heavy Solids Handling thrives in the harshest conditions, particularly excelling in River Dredging operations. Its core mission: efficiently clear channels, harbors, and basins clogged with:

• Slurry, Mud & Sediments: Fluid mixtures laden with fine particles.

• Gravel, Sand & Sea Sand: Coarse, abrasive materials.

• Sandstones & Big Solids: Handling particles up to an impressive 60mm in size.

• Waste, Wastewater & Dirty Water: Industrial byproducts requiring robust transfer.

Why the TSQ400 is Your Reliable Submersible Pump for Sand and Gravel Removal:

• Unmatched Solids Handling: Engineered to pump mixtures containing up to 70% solids, effortlessly moving gravel, sand, and large debris that would destroy standard pumps.

• Revolutionary Agitation System: The secret weapon? A powerful bottom-mounted agitation impeller. This critical component sprays deposited sludge into turbulent flow, actively re-suspending settled solids and ensuring a consistent, pumpable mixture reaches the main impeller. This dramatically boosts efficiency and prevents clogging in thick sludge or settled sediments.

• Extreme Durability: Wetted parts are forged from ultra-hard, high-chromium wearable alloy. This heavy-duty construction provides exceptional resistance to abrasion from sand, gravel, and rocky slurries, guaranteeing longevity in punishing mining, dredging, and construction environments.

• Protected for Reliability: A sophisticated mechanical seal device balances pressure within the oil chamber, safeguarding seal integrity against the challenging submerged environment. The motor is fortified with overheat and water ingress protection, ensuring safe, continuous operation even when fully submerged in abrasive mixtures.

• Submersible Powerhouse: Operating vertically while fully submerged in the pumping medium, the TSQ400 eliminates suction lift problems and delivers powerful, consistent flow directly from the source of the material.

Proven Applications:

• River & Canal Dredging: Efficiently removing silt, sand, gravel, and debris.

• Mining & Mineral Processing: Pumping ore slurry, coal slurry, tailings, and process water.

• Construction Site Dewatering: Handling muddy water, slurry, and water containing debris.

• Industrial Wastewater Treatment: Transferring sludge, grit, and heavy solids.

• Sand & Gravel Extraction: Reliable pumping of raw materials.

Hydroman^{^®} TSQ400 Submersible Heavy Solids Pump Performance Parameters:

Model	Capacity (m³/h)	Head H (m)	Power P (kw)	Speed N (r/min)	Eff. η (%)	Max. Particles (mm)	Size (mm)
TSQ400-15-37	280	18	37	980	59	28	200
	400	15
	480	12
TSQ400-25-75	280	29	75	980	62	29	200
	400	25
	480	23
TSQ400-40-90	280	44	90	980	54	28	200
	400	40
	480	36
TSQ400-50-110	280	54	110	980	56	28	200
	400	50
	480	45
TSQ400-60-132	280	64	132	980	68	28	200
	400	60
	480	55

FAQ:

Q: How does the TSQ400 handle settled sludge?
A: Its unique bottom agitation impeller actively stirs and sprays settled sludge into turbulent flow, re-suspending solids for efficient pumping, preventing blockages and maintaining high flow rates.

Q: Is the TSQ400 suitable for pumping seawater and sand?
A: Absolutely. Its high-chromium alloy construction provides excellent corrosion and abrasion resistance, making it ideal for sea sand extraction, harbor dredging, and pumping sediments in marine environments.

Q: What size solids can this pump handle?
A: The Hydroman^® TSQ400 is designed to pass large solid particles up to 60mm in diameter, making it perfect for gravel, sandstones, and other bulky debris removal.

Upgrade Your Tough-Pumping Capability Today!

Stop struggling with clogged pumps and downtime. The Hydroman^® TSQ400 Electric Submersible Heavy Solids Pump delivers the reliability, durability, and high-efficiency you demand for the most challenging sand and gravel removal, river dredging, mining, and industrial waste applications. Discover how this robust submersible solution can transform your operations – enhance your pumping performance with Hydroman^® now!
