Size: 200 mm Capacity:315-540 m3/h Head: 25-34 m Power: 90 kw Max. particle: 25 mm Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

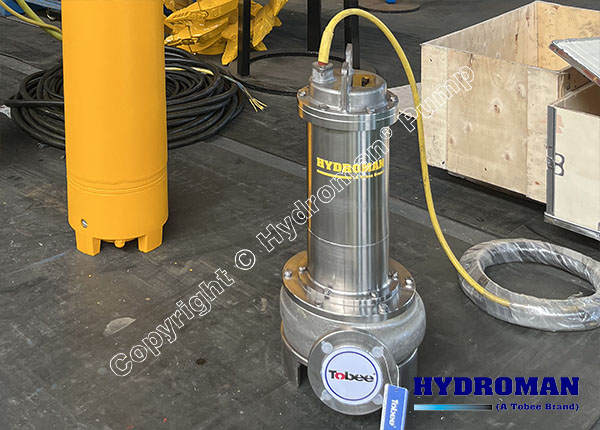

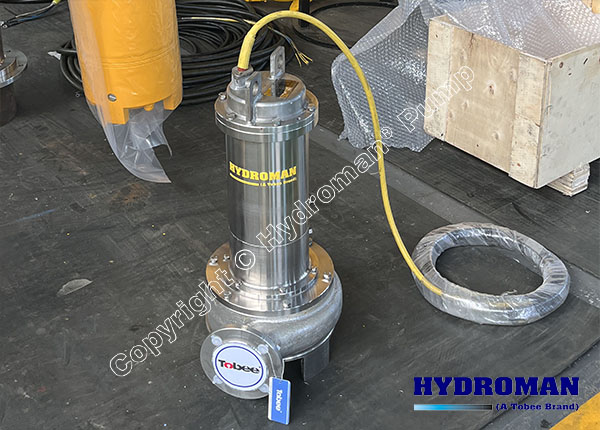

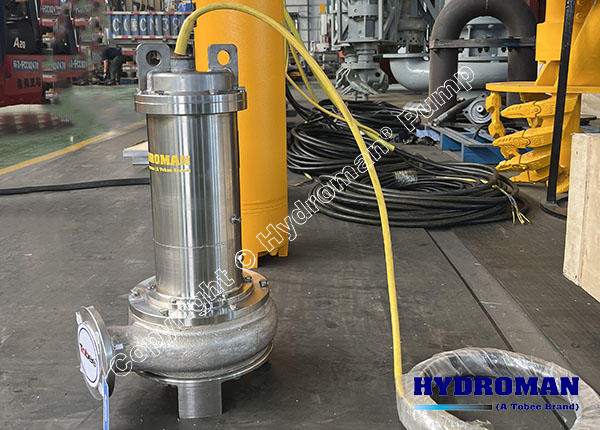

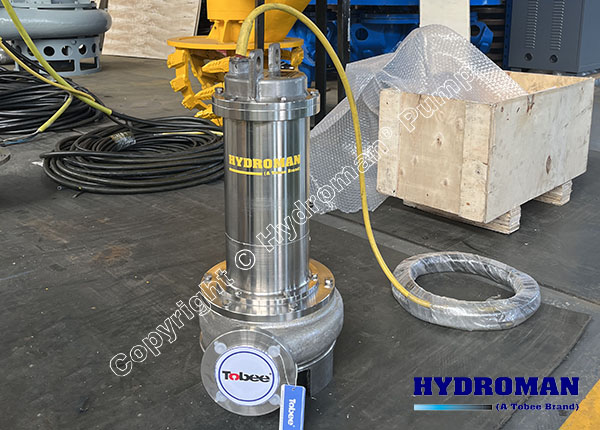

Tackling demanding wastewater applications requires robust, reliable equipment. The Hydroman® TSQ450 Electric Driven Submersible SS Wastewater Pump stands as a premier solution engineered for challenging environments. This stainless steel submersible pump for sewage is built to endure the harshest conditions, from abrasive slurries to corrosive effluents. As a true electric driven submersible pump for wastewater, it operates fully immersed, eliminating priming issues and ensuring efficient fluid movement. Designed for heavy industrial use, the TSQ450 Submersible Wastewater Pump delivers exceptional heavy duty submersible sewage pump with electric drive performance, making it the cornerstone of efficient waste transfer and site dewatering. Its durable stainless steel pump for submersible use guarantees longevity where lesser pumps fail.
The Hydroman® TSQ450 isn't just another pump; it's a specialized tool for handling the toughest waste streams imaginable. Its fully stainless steel construction provides inherent resistance to corrosion and abrasion, critical when pumping aggressive industrial wastewater, saltwater-laden effluents, or slurries containing sand, gravel, and other erosive solids. Unlike pumps merely coated in stainless, the TSQ450's core components are crafted from high-grade SS, ensuring integrity even after prolonged exposure.
Key to its effectiveness in handling settled solids and sludge is the innovative bottom agitation impeller. This unique feature actively agitates the bottom layer of the pumped medium. It powerfully sprays deposited sludge, mud, sand, gravel, and sediments back into suspension, creating a turbulent flow. This crucial action prevents solids from compacting on the tank or basin floor, significantly boosting overall pumping efficiency and ensuring consistent handling of thick slurries, sediments, sandstones, sea sand, and other difficult-to-move materials without constant manual intervention or clogging.
Industrial Wastewater Transfer: Efficiently moves effluent containing chemicals, oils, and suspended solids through treatment stages or to discharge points. Ideal as a Hydroman® TSQ450 Pump for Industrial Wastewater.
• Sludge & Slurry Dewatering: Excels in emptying sumps, pits, and tanks containing thick mud, slurry, gravel, sand, and settled organic waste.
• Sump and Lift Station Pumping: Provides reliable, clog-resistant operation in municipal and industrial lift stations handling raw sewage and wastewater laden with big solids and fibrous materials.
• Marine & Dock Wastewater: Corrosion-resistant construction makes it suitable for pumping bilge water, dock runoff, and ship wastewater, even in saltwater environments.
• Site Cleanup & Sediment Removal: Effectively pumps out dirty water containing sediments, sandstones, and other debris from construction sites, quarries, or flooded areas.
| Model |
Capacity (m3/h) |
Head H (m) |
Power P (kw) |
Speed N (r/min) |
Eff. η (%) |
Max. Particles (mm) |
Size (mm) |
| TSQ450-30-90 | 315 | 34 | 90 | 980 | 64 | 25 | 200 |
| 450 | 30 | ||||||
| 540 | 25 |
Operating fully submerged offers inherent benefits: efficient cooling of the electric motor by the surrounding liquid and silent operation. The TSQ450 is designed for vertical installation, sitting securely on the basin floor to maximize the agitation impeller's effectiveness. Its heavy-duty construction, coupled with the powerful electric drive, ensures continuous operation even when handling dense mixtures of waste, wastewater, and large solids.
A: Its key feature is the bottom agitation impeller. This impeller actively stirs up deposited materials like mud, sand, gravel, and sludge from the basin floor, spraying them into turbulent suspension. This prevents compaction and allows the pump to efficiently handle thick slurries and sediments that would stall standard pumps.
A: Yes. Constructed primarily from stainless steel (SS), the TSQ450 Submersible Wastewater Pump offers excellent inherent corrosion resistance, making it highly suitable for marine environments, docks, and applications involving saltwater or brackish wastewater.
A: Absolutely. Designed as a heavy duty submersible sewage pump with electric drive, the TSQ450 features robust hydraulics and often incorporates vortex or semi-open impeller designs capable of passing significant solid sizes commonly found in wastewater, including fibrous materials and debris.
Stop struggling with inefficient pumps prone to clogging and corrosion. The Hydroman® TSQ450 Electric Driven Submersible SS Wastewater Pump delivers the durable stainless steel construction, powerful electric drive, and unique agitation impeller technology needed for reliable, efficient handling of your toughest wastewater, sludge, sediment, and slurry challenges. Experience the Hydroman® difference in performance and longevity.
