TSQ500 Underwater Slurry Pumping System

SPECIFICATIONS:

Size: 200-250 mm
Capacity: 350-600 m³/h
Head: 15-59 m
Power: 45-132 kw
Max. particle: 25-46 mm
Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

Share

+86 180 3203 4573

Sales@tobeepump.com

Inquire Now Next Products

Description

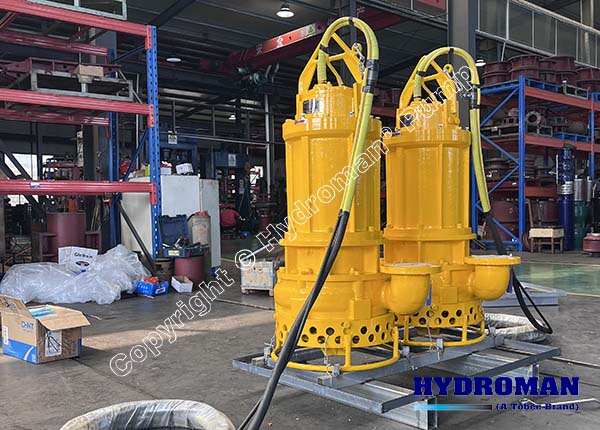

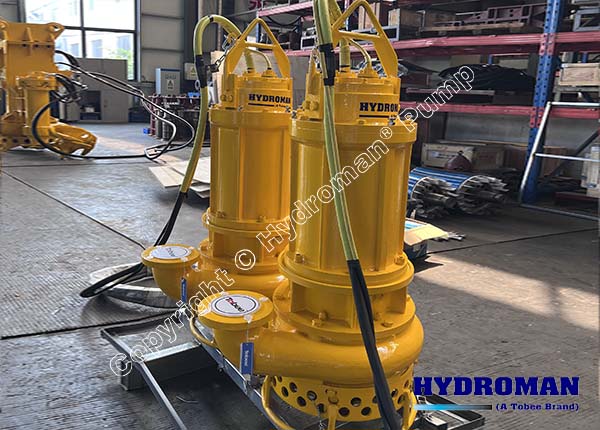

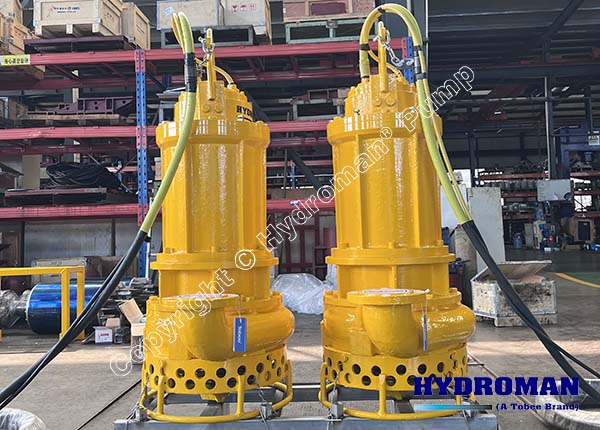

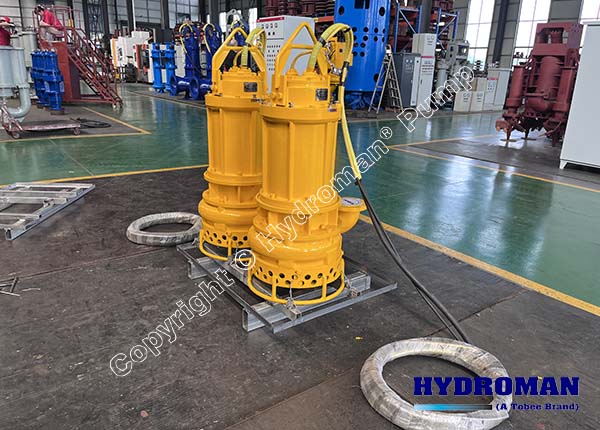

Hydroman^® TSQ500 Electric Underwater Slurry Pumping System: Powerhouse for Submerged Abrasives

Meet the Hydroman^® Electric Slurry Pumping System for Mining and beyond: the TSQ500 Electric Underwater Slurry Pumping System. Engineered for the toughest submerged environments, this Heavy Duty Underwater Slurry Pump with Electric Drive delivers unmatched High Efficiency Electric Slurry Pumping Equipment performance. Designed specifically as a Submersible Electric Pumping System for Slurry Handling, the Hydroman^® TSQ500 Pump for Dredging and Slurry Transfer excels where others falter, processing highly abrasive materials like slurry, gravel, sand, mud, waste, wastewater, big solids, dirty water, sea sand, sediments, and sandstones with remarkable resilience. Built for power, longevity, and relentless operation underwater.

Uncompromising Design for Demanding Depths:

Operating entirely submerged, the TSQ500 leverages its coaxial electric motor and pump unit directly within the medium. This Durable Electric Submersible Pump for Slurry Applications features critical innovations:

• Agitation Powerhouse: A robust bottom-mounted agitation impeller fluidizes settled solids, spraying compacted sludge into turbulent flow. This dramatically improves suction efficiency and prevents clogging, crucial for effective underwater sediment and slurry cleanup.

• Abrasion Defense: Wetted components are forged from ultra-hard, high-chromium alloy, offering exceptional wear resistance against sand, gravel, and sharp particles, ensuring a long operational lifespan even in continuous, harsh conditions.

• Clog-Free Performance: Generous internal flow passages allow large solids to pass effortlessly, minimizing downtime and maintenance headaches during dredging or industrial waste removal.

• Sealed for Safety: A sophisticated multi-stage mechanical seal system provides superior protection, rigorously guarding the electric motor against water ingress and abrasive contaminants, guaranteeing reliable underwater operation.

• Intelligent Protection: Integrated sensors offer vital motor safeguards, including overheat protection and water leak detection, preventing catastrophic failures and ensuring operational security.

• Optimized Control (Optional): VFD compatibility allows for precise speed adjustment, optimizing flow rates for specific tasks like river desilting or slurry transfer, enhancing efficiency and reducing energy costs.

Dominating Underwater & Slurry Applications:

The Hydroman^® TSQ500 is the go-to solution for challenging submerged material handling:

• Large-Scale Dredging: Essential for harbor construction, channel deepening, beach nourishment, and offshore or inland waterway maintenance, efficiently moving vast volumes of sand, silt, and sediment.

• Mining & Mineral Processing: Ideal for dewatering pits, transferring ore/coal slurries, and tailings management in demanding mining and quarrying operations.

• Industrial Slurry Transfer: Reliably handles abrasive industrial waste streams, wastewater with solids, and process slurries.

• Infrastructure & Cleanup: Perfect for river and lake desilting projects, port construction dewatering, and cleaning settling ponds or contaminated sediments.

Hydroman^{^®} Underwater Slurry Pumping System TSQ500 Performance Parameters:

Model	Capacity (m³/h)	Head H (m)	Power P (kw)	Speed N (r/min)	Eff. η (%)	Max. Particles (mm)	Size (mm)
TSQ500-15-45	500	15	45	980	57	46	250
TSQ500-25-90	350	30	90	980	65	25	200
	500	25
	600	20
TSQ500-35-110	350	38	110	980	61	32	200
	500	35
	600	31
TSQ500-45-132	350	49	132	980	67	28	200
	500	45
	600	42
TSQ500-55-132	350	59	132	980	70	28	200
	500	55
	600	52

FAQs:

Q: How does the TSQ500 handle compacted sludge underwater?
A: Its powerful bottom agitation impeller actively breaks up and fluidizes settled solids, creating turbulent flow that the pump can efficiently suction, preventing blockages and enhancing cleanup effectiveness.

Q: Is the Hydroman^® TSQ500 suitable for seawater dredging?
A: Absolutely. Constructed with high-chromium wear-resistant alloys and advanced seals, it is specifically designed to handle abrasive materials like sea sand and sediments in marine environments.

Q: Can the flow rate of the TSQ500 be adjusted?
A: Yes, with an optional Variable Frequency Drive (VFD), operators can precisely control the pump speed, optimizing performance for varying slurry densities and specific project requirements while saving energy.

Experience the Hydroman^® TSQ500 Difference

When performance, durability, and efficiency in submerged abrasive pumping are non-negotiable, trust the Hydroman^® TSQ500 Electric Underwater Slurry Pumping System. This robust Submersible Electric Pumping System for Slurry Handling is engineered to conquer the most challenging underwater cleanup and transfer tasks, from mining slurry to harbor dredging. Hydroman^® TSQ500 Electric Underwater Slurry Pumping System delivers powerful and efficient slurry transfer for mining, dredging, and industrial use. Built for durability and performance. Contact us for reliable slurry solutions today!
